Mobile Patrol Positioning
Field teams use portable detectors to locate signal sources during perimeter sweeps.
RF TARGET POSITIONING & TRACKING
RF Target Positioning: Spectrum Analysis & Direction Finding
Compare portable and fixed RF target positioning equipment for spectrum monitoring, bearing estimation and multi-sensor target tracking.
300 MHz-6 GHz spectrum scanningBearing & direction findingPortable & fixed deployment
Request RF Positioning Review
Уровень обнаружения / конфигурация объекта
01
СЦЕНАРИИ ПРИМЕНЕНИЯ
How does RF target positioning support низковысотный мониторинг?
RF target positioning detects radio signals transmitted by remote controls and video links to determine target direction and position clues. Handheld and portable field units allow patrol teams to locate signal sources during mobile operations. Fixed passive RF receivers provide continuous 360-degree direction finding across facility boundaries. When combined with target detection radar and EO/IR tracking, RF positioning provides critical early warning before visual contact is established.
Fixed Site Direction Finding
Installed RF arrays estimate target approach bearings across facility boundaries.
Event Security Monitoring
Temporary spectrum monitoring positions log RF activity around temporary venues.
Multi-Sensor Handoff
RF bearing data cues pan-tilt optical cameras for visual target confirmation.
02
ВЗАИМОДОПОЛНЯЮЩИЕ СЕНСОРНЫЕ УРОВНИ
RF positioning product options
Select handheld, portable or fixed RF equipment depending on mobility and coverage needs.

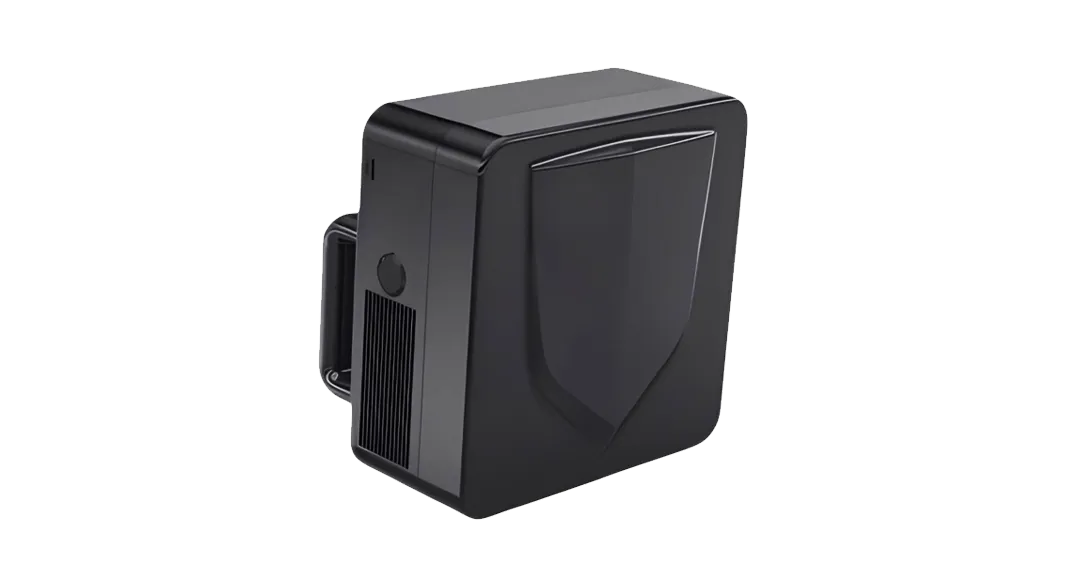

Переносная RF-система идентификации
A 16 kg hand-carried spectrum analyzer with integrated display for field positioning and direction finding.
- 300 MHz-6 GHz frequency range
- 13.3-inch touch screen
- 5 hours rated battery life
PL280H Handheld RF Detector
A lightweight 350 g handheld RF monitor for individual patrol users requiring immediate signal alerting.
- Compact handheld format
- Vibration, sound & visual alerts
- Up to 6 hours operating time
Стационарная система RF-идентификации
Fixed passive RF array for continuous 360-degree direction finding and multi-target bearing estimation.
- Fixed passive monitoring
- Горизонтальный охват 360°
- Networked command linkage
03
СРАВНЕНИЕ ДЛЯ ЗАКАЗЧИКА
Handheld vs. Portable vs. Fixed RF Positioning
Compare mobility, display capabilities, direction-finding accuracy and power options.
| Критерий выбора | Handheld (PL280H) | Portable Case | Stationary Array |
|---|---|---|---|
| Form Factor | 350 g handheld unit | Портативный кейс 16 кг. | Fixed tower / mast mount |
| Primary Role | Individual patrol alert | Temporary post / field team | Continuous facility protection |
| Display & Interface | OLED screen + alerts | 13.3-inch interactive display | Remote command software |
| Direction Accuracy | Basic sector alert | Поддержка определения направления | High-precision RF bearing |
04
РАБОЧИЙ ЦИКЛ
RF positioning workflow sequence
From initial signal detection to operator action and event logging.
01
Signal Detection
RF receivers detect target transmission frequencies and log signal strength.
02
Bearing Estimation
Direction-finding algorithms compute target approach bearing.
03
Optical Cueing
Bearing data is relayed to EO/IR camera for visual confirmation.
04
Record & Handoff
Командная платформа сопоставляет подтвержденный трек, отображает состояние датчиков и устройств, координирует настроенную последовательность ответов и записывает сигналы тревоги, команды и результаты.
Перед вводом в эксплуатацию определите контакты для эскалации, полномочия принятия решений, процедуры на объекте и требования к хранению документации.
05
СЦЕНАРИИ РЕШЕНИЯ
RF target positioning scenarios
Deployable solutions for fixed installations and mobile response teams.
Patrol Team Field Positioning
Mobile security officers use handheld and portable RF units to locate signal sources during field sweeps.
- Rapid field deployment
- Real-time spectrum alerts
- Command room status relay
Industrial Perimeter Bearing Tracking
Fixed RF arrays monitor boundary sectors and pass bearing coordinates to site security management.
- continuous operation within documented power, network and environmental limits boundary monitoring
- Multi-target bearing resolution
- Automated optical cueing
ЧАСТЫЕ ВОПРОСЫ
RF Target Positioning FAQ
Does RF positioning work against silent targets?
RF positioning relies on active radio emissions. Silent or autonomous targets without radio links require target detection radar for tracking.
What is the typical range of RF positioning equipment?
Detection range depends on target transmitter power, frequency, antenna line-of-sight and background RF noise levels.
